Seametrics IP800 Insertion Paddlewheel Flow Sensor

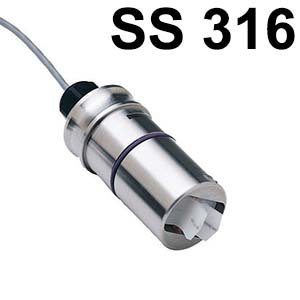

IP800-Series are impeller (or “paddlewheel”) insertion meters designed for use with a wide variety of liquids in pipe sizes 1/2” to 8”. Sensors are available in brass, 316 stainless steel, PVC, and polypropylene.

Description

IP800-Series are impeller (or “paddlewheel”) insertion meters designed for use with a wide variety of liquids in pipe sizes 1/2” to 8”. Sensors are available in brass, 316 stainless steel, PVC, and polypropylene. Bodies are machined from a solid rod for maximum precision. High-quality jewel bearings and nickel-bound tungsten carbide shafts are used for extreme low friction and long life. Low-flow performance is good, although other Seametrics flow meters are recommended where extremely low flows are being measured. The rotation of the rotor is detected by a non-drag Hall-effect sensor. Output is a current-sinking pulse, which can be sent long distances (up to 2,000 feet) without a transmitter. This signal can be connected directly to PLC’s, counters, and computer cards, as well as a variety of Seametrics controls and displays. Seametrics IP meters are ideal for chemical proportioning applications. If no display is required, a simple divider such as the PD10 provides
adjustable pump pacing. For rate and total display, a modular system of electronics can be installed directly on the flow sensor or mounted
remotely. The FT430 (externally powered with pulse), FT440 (loop powered), and FT450 (battery powered) all provide digital rate and total
displays, as well as a programmable pulse; the FT440 also provides a 4-20 mA analog output. Electronic modules can be wall- or meter- mounted. The IP800-Series require special fittings that ensure correct depth placement in the pipe. Fittings come in a variety of materials for
compatibility with specific applications. Tee fittings are individually wet calibrated at the factory and marked with the K-factor (pulses per gallon). Saddle fittings must be field-installed on the pipe and do not come wet calibrated. K-factors for saddles are based on factory-testing

Brand

Seametrics

Seametrics

Seametrics, a member of the TASI Flow Group, is a designer and manufacturer of a variety of flow metering and submersible sensor products. Since 1990, we have provided innovative solutions to users in irrigation, fracking, water & wastewater, environmental, and processing applications. Our products have a reputation for durability and accuracy at a competitive price and are sold through our network of domestic and international distributors.

Located just south of Seattle, our Kent, WA factory is home to both our engineering and production groups. We employ just-in-time manufacturing methods and have a high commitment to continuous improvement as demonstrated by our ISO 9001 quality management system. Our focus on innovation, product value and customer accessibility has resulted in over two decades of continuous growth. Seametrics is dedicated to helping conserve the world’s most valuable resource by providing our customers with precision flow meter and environmental sensor products.

Feature

  • Low-friction, long-life jewel bearings
  • One moving part
  • Fully field-repairable
  • Choice of materials for compatibility with a variety of chemicals
  • Fits 1/2” to 8” pipe
  • Fixed depth in fitting ensures proper placement in pipe

Application

  • Industrial water/wastewater treatment
  • Cooling water monitoring
  • Industrial fluid control
  • Chemical proportioning

Specification

Pipe Size 1/2” to 8”
Power Low Power: 6-36 Vdc/< 2 mA Micropowered (-04 Option): 3.1-16 Vdc/60 μA @ 3.6 Vdc
Sensor Low Power: Digital Magnetoresistive Micropowered (-04 Option): Giant Magnetoresistance (GMR)
Materials Optional Housing Powder-coated cast aluminum
Sensor Body Brass, 316 Stainless Steel, PVC, or Polypropylene
O-ring EPDM (Viton® optional)
Rotor PVDF (Kynar®)
Shaft Kynar® /Tungsten Carbide (Kynar® /Ceramic or Kynar®/Silicon Carbide optional)
Bearings Ruby jewel
Maximum Material Sensor Brass 316 Stainless Steel PVC or Polypropylene (See Pressure vs. Temp. Chart)
Pressure  200 psi (14 bar) 200 psi (14 bar) 175 psi (12 bar) @ 75˚ F (24˚ C)
High Pressure Not available 400 psi (28 bar) Not available
Temperature 200˚ F (93˚ C) 200˚ F (93˚ C) 130˚ F (55˚ C)
Flow Velocity 0.3 to 30 ft/sec (0.09 to 9.14 m/sec)
Accuracy ± 1.5% of full scale
 Output Transistor Maximum Current Sinking 150mA (low power version only)
Cable #22 AWG 3-con, 18’ (6m); 2,000’ (610m) maximum cable run Note: 50’ (15m) maximum for battery powered or micropowered versions.
Environmental See meter mounted electronics specification for rating
 Regulatory Mark  CE Mark

Flow Range

Nominal Pipe Size ½” ¾” 1″ 1½” 2″ 3″ 4″ 6″ 8″
Min GPM
Min LPM
0,28
1,06
0,5
1,89
0,8
3,03
1,9
7,2
3,1
11,7
6,9
26,1
12
45
27
102
46,8
177
Max GPM
Max LPM
28
106
50
189
80
302
190
719
314
1188
691
2615
1190
4504
2700
10221
4680
17716

Additional Information

Quick Start Guide: Seametrics IP800 Quick Start Guide

Datasheet: Seametrics IP800 Datasheet

Manual Instruction: Seametrics IP800 Instruction Manual
