Maeda Koki MKCM type AIR SIGNAL- Flow Indicator

Maeda Koki MKCM it is a rheoscope confirming fluid flow by the movement of transparent floats in the jurisdiction, detect fluid flow and let it is ON, or a switch be off with the flow quantity of the designation.  It is a rheoscope confirming fluid flow by the movement of transparent floats in the jurisdiction.

Description

Maeda Koki MKCM it is a rheoscope confirming fluid flow by the movement of transparent floats in the jurisdiction, detect fluid flow and let it is ON, or a switch be off with the flow quantity of the designation.  It is a rheoscope confirming fluid flow by the movement of transparent floats in the jurisdiction.

By a metal protective cover possibility of damage by shocks from the outside, The posture when I attach it as I use a spring inside look up and look down and can perform sideways-facing freely.

Brand

Maeda Koki

Features

  • A switch is with flow quantity. It detects fluid flow and lets it is ON, or a switch is off with the flow quantity of the designation. ※The switch is rigid (the setpoint change from a trace is not possible)

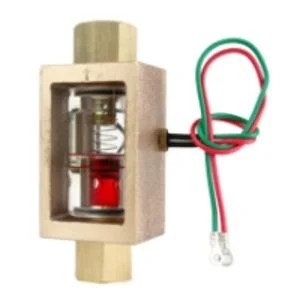

  • It can see a flow at first sight. It is a rheoscope confirming fluid flow by the movement of transparent floats in the jurisdiction
  • With protective cover. With a metal protective cover possibility of the damage by shocks from the outside, It reduces it.
  • The installation direction does not matter. The posture when It attaches it as It uses a spring inside. It looks up and look down and can perform sideways-facing freely.

Applications

MKT is a flow indicator, flow switch, and flow control depending on the type. It is the electric point of contact model rheoscope using the lead switch. With protective cover. It can appoint the operation flow quantity of the switch

Specification

Standard specifications

Fluid
Gas
Operation flow quantity
Please appoint it with the above, a flow quantity level in the designated range of the operation flow quantity.
Connection
Rc internal thread
Change to R screw
The combination with the R screw is possible, too.
Heat-resistant temperature
A maximum of 60 degrees Celsius
I can produce the heat-resistant specifications (a maximum of 100 degrees Celsius), too.
Withstand pressure
1MPa
I can produce the withstand pressure specifications (up to 5MPa), too.
The use of maximum voltage
DC, AC 300V
Use of maximum electric current
DC, AC 0.5A
Point of contact capacity
50VA
Materials
Transparent pipe
Acrylic
The heat resistance, withstand pressure specifications product becomes brass pipe (C3604).
The heat resistance, withstand pressure specifications product cannot see the float.
Protective cover
BC (gunmetal)
I can produce the product made in aluminum, too.
Coupling
C3604 (brass)
I can produce the product made in SUS, too.
Spring
SUS304
Float with magnet
Acrylic or
Nylon
I may use a product made in aluminum by specifications.
O ring
Nitrile rubber
Heat resistance, the withstand pressure specifications become the fluorine rubber.
Lead switch
Marketing product
Lead
(authentic sample 200mm)
Marketing product
Designation of the length of the lead, the change to cab tire cord are possible, too.

Additional Information

List of models

Model
Dimensions (mm)
Flow quantity (L/min)
Connection diameter
Full length
Overall width
Depth
The smallest inside diameter
φmm
Designated range of the operation flow quantity
Maximum
MKCM20-1TA-OFF
Rc1/8
80
30
22
6.5
1-40
300
MKCM20-1TA-ON
MKCM20-2TA-OFF
Rc1/4
80
30
22
6.5
1-40
300
MKCM20-2TA-ON
MKCM20-3TA-OFF
Rc3/8
86
30
25
6.5
1-40
300
MKCM20-3TA-ON
MKCM30-2TA-OFF
Rc1/4
104
43
32
9.5
5-100
600
MKCM30-2TA-ON
MKCM30-3TA-OFF
Rc3/8
104
43
32
9.5
5-100
600
MKCM30-3TA-ON
MKCM30-4TA-OFF
Rc1/2
110
43
32
9.5
5-100
600
MKCM30-4TA-ON
MKCM35-4TA-OFF
Rc1/2
124
49
44
13.5
30-150
1500
MKCM35-4TA-ON
MKCM35-6TA-OFF
Rc3/4
124
49
44
13.5
30-150
1500
MKCM35-6TA-ON
MKCM45-6TA-OFF
Rc3/4
142
62
50
18.0
50-300
3000
MKCM45-6TA-ON
MKCM45-8TA-OFF
Rc1
142
62
50
18.0
50-300
3000
MKCM45-8TA-ON
