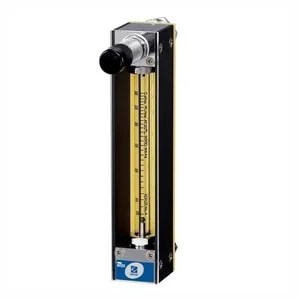

This is a grade high precision float type flowmeter com-bined with a needle valve capable of very accurate flow control. It is ideal for measurement and control of minute flows.
This is a grade high precision float type flowmeter com-bined with a needle valve capable of very accurate flow control. It is ideal for measurement and control of minute flows.
The natural environment is preserved through the balance of solids, liquids and gases that exist on the earth. However, human civilization has caused pollution that has greatly damaged our environment. The task of the present generation is to restore our environment to its natural healthy state. And this is also the greatest challenge for 21st century science and technology.
KOFLOC's corporate motto is "A Scientific Approach for Fluids." In other words, we create products that scientifically measure and control the balance of liquids and gases. We trust that through our work we are making a contribution to the regeneration of the environment and to the establishment of a prosperous society.
| Gases | Liquids | |
| Fluids | Air, N2, O2, H2, He, Ar, and CO2 (Calibration by actual gas) For other gases, consultation is necessary regarding whether conversion conditions or calibration by actual gas is to be used. * Optional: Scale indicating two types of fluids | Standard fluid: Water For other liquids, consultation is necessary regarding whether conversion conditions or calibration by actual liquid is to be used. |
| Flow range | 0.5-5 ML/MIN to 10-100 L/MIN (See the Capacity Table below.) * Optional: 0.5-3 ML/MIN | 0.5-5 ML/MIN to 0.2-2 L/MIN (See the Capacity Table below.) * Optional: 0.5-3 ML/MIN |
| Accuracy | FS±2% (Measurement point) * Optional: FS±1% (Measurement point) | FS±2% (Measurement point) |
| Proof pressure | 1.0 MPa for 100 ML/MIN or less 0.7 MPa for 5 L/MIN or less 0.5 MPa for 10 L/MIN or more | 1.0 MPa for 5 ML/MIN or less 0.7 MPa for 150 ML/MIN or less 0.5 MPa for 200 ML/MIN or more |
| Available scale | 10:1 * Optional: 20:1 | |
| Materials | SS | BS |
| Body block | SUS316 | Brass |
| Tapered tube | Pyrex®, glass | |
| Packing | FKM | NBR |
| Float | Pyrex, SUS316, SUS304, glass | |
| Protective cover | Acrylic resin | |
| Temperature resistance | MAX60℃ | |
| Connection end | Rc1/4 (Standard); Rc1/8 (Optional) | |
| Air (Flow rate at atmospheric pressure) | ||||||||||||||||||||
| Max. flow rate | 5 | 10 | 20 | 30 | 50 | 100 | 150 | 200 | 300 | 500 | 1 | 2 | 3 | 5 | 10 | 15 | 20 | 30 | 50 | 100 |
| Total length | ML/MIN | ML/MIN | ML/MIN | ML/MIN | ML/MIN | ML/MIN | ML/MIN | ML/MIN | ML/MIN | ML/MIN | L/MIN | L/MIN | L/MIN | L/MIN | L/MIN | L/MIN | L/MIN | L/MIN | L/MIN | L/MIN |
| 120mm | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | － |
| 150mm | － | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ |
| 200mm | － | － | － | － | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | － |
| 250mm | － | － | － | － | － | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | － |
| H2O | ||||||||||||||||||||
| Max. flow rate | 5 | 10 | 20 | 30 | 50 | 100 | 150 | 200 | 300 | 500 | 1 | 2 | ||||||||
| Total length | ML/MIN | ML/MIN | ML/MIN | ML/MIN | ML/MIN | ML/MIN | ML/MIN | ML/MIN | ML/MIN | ML/MIN | L/MIN | L/MIN | ||||||||
| 120mm | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | － | ||||||||
| 150mm | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||||||
| 200mm | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||||||
| 250mm | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | － | ||||||||
Contact us with your specification for assessment and availability of other products configurations.
