Fluidwell F074 Safe Area Level Controller
Fluidwell F074 Safe Area Level Controller
Fluidwell F074 Safe Area Level Controller

Fluidwell F074 Safe Area Level Controller

Robust Intrinsically Safe level indicators for safe and hazardous areas. Combining easy operation and extreme durability in the toughest conditions.

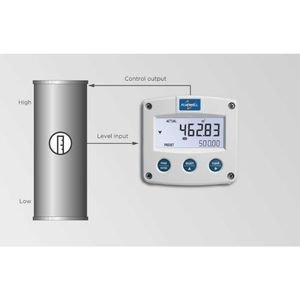

The F074 is a basic level / pump controller that works with a preset value and two switch points to control a pump or valve. The low and high level switch points are entered as a percentage of the preset value to switch the device on / off. For pump control applications, the function can be inverted to empty a well. A stable level within a hysterese around the preset value is the result.

Get a Quote!

Description

The F074 is a basic level / pump controller that works with a preset value and two switch points to control a pump or valve. The low and high level switch points are entered as a percentage of the preset value to switch the device on / off. For pump control applications, the function can be inverted to empty a well. A stable level within a hysterese around the preset value is the result.

The configuration of the Span, off-set and number of decimals is done through software functions, without any sensitive DIP-switches or trimmers. The display shows the actual level, preset value, high / low switch points and status. On-screen engineering units are easily configured from a comprehensive selection.

Advantages
  • Robust aluminum or stainless steel 316L field enclosure (IP66, IP67 / NEMA Type4X) .
    It is so rugged, a truck can even stand on it!
  • Intrinsically Safe available – ATEX, IECEx, FM and CSA approval for gas and dust applications.
  • Familiar easy operation with the Fluidwell “Know one, know them all” configuration structure, saving time, cost and aggravation.
  • Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors.

Brand

Fluidwell

Fluidwell

By default, we offer an extensive portfolio. Products that can be easily adapted to your needs. Moreover, we like to think along and ahead to achieve the best solution for any application. We have just one goal in mind:

Your Success CountYou want to be on track continuously when it comes to quality, safety and yield. Moreover, you want to work with systems that guarantee maximum performance and uptime, even under extreme conditions. Fluidwell offers you the best, future-proof answers in the field of signal processing equipment.

Flow indicators, totalizers and computers are our core business. We have the profound knowledge and experience to develop products that perform, always. We develop beyond specs, intrinsically safe, and explosion proof... because we know what works best and what the requirements are to keep working over time.

Features

  • Level control: high / low switch points and a preset value can be set.
  • Displays actual level, switch points, status and preset value.
  • Switch points and preset value can be set by the operator or they can be password protected.
  • One control output for on / off pump or value control.
  • Level: six large 17mm (0.67″) digits.
  • Selectable on-screen engineering units for level: ml, L, m³, GAL, USGAL, kg, lb, bbl or no unit.
  • Selectable on-screen engineering units for height: mm, cm, m, mtr, inch, ft, mmwk, mmwc, cmwk, cmwc, mwk, mwc, inwc, ftwc, mBar, Bar, PSI or no unit.
  • LED backlight with adjustable intensity.
  • Intrinsically safe according ATEX, IECEx, FM and CSA C-US.
  • GRP, Aluminum or high grade stainless steel enclosure.
  • Auto backup of settings in EEPROM memory.
  • Easy configuration with clear alphanumerical display.
  • Ambient temperature: -40°C to +80°C (-40°F to 176°F).
  • Various accessories are available for this product.

Applications

  • Basic on / off level control applications without PI(D) control requirements. Also very suitable for applications where the required level changes frequently.
  • Functions for filling-up a container or emptying a well or tank.
  • The F-Series is your first and best choice for field mount indicators in safe and hazardous area applications. Especially in harsh weather conditions like rain, snow, sandy deserts, salty atmospheres and temperatures between -40°C up to +80°C (-40°F up to 176°F).

Specifications

Signal Inputs

Level Inputs

      • (0)4 – 20mA.

Signal Outputs

Control outputs

      • Function: Control output to control a pump or valve, according to the high / low level switch point values.
      • Type: One passive NPN transistor, active PNP transistor or isolated electro-mechanical relay.

Supply

Power Supply

      • Long life Lithium battery.
      • 4 – 20mA, input Loop-powered.
      • 8 – 24V AC/DC.
      • 115 – 230V AC.
      • Basic: 8 – 30V DC.

Sensor Supply

      • 8.2, 12, 24V DC.

Hazardous Area

Intrinsically Safe

      • ATEX:
        Gas: II 1 G Ex ia IIC T4 Ga
        Dust: II 1 D Ex ia IIIC T100°C Da
      • IECEx:
        Gas: Ex ia IIC T4 Ga
        Dust: Ex ia IIIC T100°C Da
      • CSA:
        I.S. Class I/II/III, Div 1, Grp A…G, T4
        Class I, Zone 0, AEx ia IIC T4
      • FM:
        I.S. Class I/II/III, Div 1, Grp A…G, T4
        Class I, Zone 0, AEx ia IIC T4

Explosion Proof

      • ATEX:
        Gas: II 2 G / Ex d IIB T5 Gb
        Dust: II 2 D / Ex t IIIB T100°C Db

Communication

      • Modbus communication available on F1-Series products.
      • HART communication is available with the F018 & E018 Flow rate Monitor / Totalizers.
