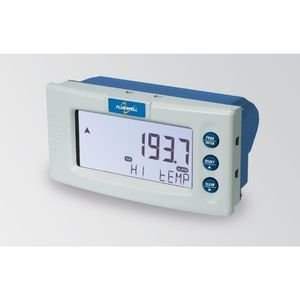

Fluidwell D043 DIN Panel Mount Temperature Monitor

Watertight DIN panel mount indicators, the better alternative for your existing, not waterproof panel meters.

The D043 is a versatile, panel mount temperature indicator with continuous temperature monitoring feature. It offers the facility to set one low temperature and one high temperature alarm value. If desired, an ignore function can be set up to allow for an incorrect temperature for a certain period of time.

Get a Quote!

Description

Watertight DIN panel mount indicators, the better alternative for your existing, not waterproof panel meters.

The D043 is a versatile, panel mount temperature indicator with continuous temperature monitoring feature. It offers the facility to set one low temperature and one high temperature alarm value. If desired, an ignore function can be set up to allow for an incorrect temperature for a certain period of time.

Advantages
  • Unique, robust IP66, IP67 (NEMA Type4X) panel mount front enclosure made of die cast aluminum, allowing even big jets of water and total immersion.
  • Familiar easy operation with the Fluidwell “Know one, know them all” configuration structure, saving time, cost and aggravation.

Brand

Fluidwell

Fluidwell

By default, we offer an extensive portfolio. Products that can be easily adapted to your needs. Moreover, we like to think along and ahead to achieve the best solution for any application. We have just one goal in mind:

Your Success CountYou want to be on track continuously when it comes to quality, safety and yield. Moreover, you want to work with systems that guarantee maximum performance and uptime, even under extreme conditions. Fluidwell offers you the best, future-proof answers in the field of signal processing equipment.

Flow indicators, totalizers and computers are our core business. We have the profound knowledge and experience to develop products that perform, always. We develop beyond specs, intrinsically safe, and explosion proof... because we know what works best and what the requirements are to keep working over time.

Features

  • Displays actual temperature and alarm values.
  • Two alarm values can be entered: low and high temperature alarm.
  • Temperature: six large 17mm (0.67) digits.
  • Selectable on-screen engineering units: °C – °F – K.
  • Ambient temperature: -40°C to +80°C (-40°F to 176°F).
  • Red flashing LED backlight in case of a temperature alarm.
  • Easy configuration with clear alphanumerical display.
  • Aluminum DIN front panel of 144 x 72mm (5.67” x 2.83”) according DIN 43700 / IEC 61554.
  • Various accessories are available for this product.

Product Specification

Signal Inputs

Temperature Inputs

  • (0)4 – 20mA.
  • 0 – 10V DC.

Signal Outputs

Alarm outputs

  • Function:Configurable alarm output for high, low or both combined temperature alarms.
  • Type:One passive signal output, an active signal output or a robust, highly isolated (NO/NC) relay.

Analog outputs

  • None

Supply

Power Supply

  • Basic: 8 – 30V DC (no real sensor supply).
  • Long life Lithium battery.
  • 4 – 20mA input Loop-powered.
  • 24V AC/DC + sensor supply.
  • 115 – 230V AC + sensor supply.

Sensor Supply

  • 2, 12 & 24V DC.

Hazardous Area

Intrinsically Safe

  • For Intrinsically Safe applications we recommend the F-Series.

Communication

  • Modbus communication available on F1-Series
  • HART communication is available with the F018 & E018Flow rate Monitor / Totalizers.



Applications

  • The D043 fits in applications where continous temperature measurement and monitoring is important.
  • The D-Series is a DIN-sized display and the better alternative for your existing, not waterproof, front panel mount indicators in extreme weather outdoor applications or e.g. in food industries where working environments are often cleaned with powerful water jets.
