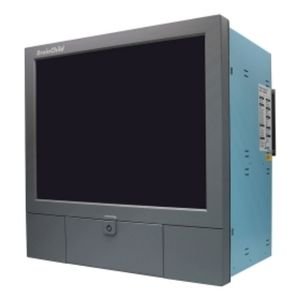

Brainchild PR30 Paperless Graphic Recorder

BrainChild PR30 is a paperless temperature recorder for laboratories, factories and classrooms alike. It has a built-in high resolution 12.1-inch touchscreen display, 48 channels, plug & play IO cards, and internal Flash memory storage. Standard Ethernet and optional RS-232/RS-422/RS485 communication enable users to access onscreen data and setup remote monitoring via the RS serial interface or Ethernet networking. The PR30 paperlss chart recorder includes standard configuration software featuring a historical viewer.

Brainchild new PR series paperless recorders are launched in full product range with outstanding specifications and features. The PR30 model paperless graphic Recorder features 12.1” displays, 100 msec. sampling rate, external channels, batch, custom display, more strict FDA 21 CFR part 11, handwriting messages, SD slot, 2 USBs, pulse input, field calibration, Web Server, email, 19 languages, IP65, and yet in shorter depth 167mm.
For some industries preferred circular display, PR30 can offer unique feature and set the speed for each page/circle in variety time modules.

Brand

Brainchild

Brainchild

BrainChild Electronics Co., Ltd. was established in 1977. Presently we are the largest Temperature Controller maker in Taiwan, and the only maker of the paperless recorder in Taiwan.

The factory has a full automatic SMT production line. TÜV Rheinland certifies our ISO9001 once a year. In addition we have a well equipped and CSA certified laboratory to do CSA, UL and CE tests. A strong and experienced R&D team allows us to offer customers innovative and state-of-art industrial instruments for various FA solutions. We have won good reputation by supplying quality instruments with better features at competitive prices. It is our philosophy in pursuit of perfection through continuous improvement.

Features

  • Touch Screen, TFT, 65K color
  • 100 msec. scan rate
  • Internal memory: 256 MB Flash
  • CPU: ARM Cortex-A8, 1Ghz
  • Standard: Ethernet, SD slot & USB
  • Option: RS232/422/485 & Pulse input
  • Protection: IP65 front & IP20 rear
  • Standards: CE, cULus & RoHS
  • Pulse input for flow applications
  • Direct printer connectivity
  • Webserver & Email directly from Recorder
  • Remote IO channels, virtual channels
  • Master & slave, modbus RTU and TCP protocols
  • Custom display pages similar to HMI
  • Batch operations, built in security & FDA 21 CFR part 11
  • 19 international languages

Applications

Specifications

proimages/PIC/Recorder/Paperless_Recorder/size_diagram/PR30.png
Product position Big size and high-end one, good for sophisticated applications, for example power industry
Input numbers 6, 12, 18, 24, 30, 36, 42, 48 channels
True universal inputs Thermocouples: J, K, T, E, B, R, S, N, L, U, P, W5, W3, LR, A1, A2, A3, M
RTD: Pt50, Pt100, Pt200, Pt500, Pt1000 (α=0.00385), Pt50, Pt100 (α=0.00391)Cu10 (α=0.00427), Cu50, Cu100(α=0.00426, 0.00428), Ni100, Ni200, Ni500,JPt50, JPt100, JPt200, JPt500, JPt1000 (α=0.003916) Ni1000 (α=0.00617) mA, V, mV
The fastest sampling rate o reach 100 msec / dot, default setting at 1 sec / dot
Math, External channels, Batch,
Custom display, FDA 21 CFR part 11
Math in standard version, others in Plus versions
Display 12.1″ TFT touch screen
Resolution 1024 x 768
MTFB backlight at 25°C 60,000 hrs
Backlight LED
Screen saver, Email Yes
A faster CPU ARM Cortex-A8, 1Ghz
Internal flash memory 256 MB
RAM 256 MB
Ethernet Modbus TCP/IP
RS-232/422/485 Optional RS-232 or RS-422/485 Modbus RTU
SD card slot, USB host x 2 Standard, one USB in the front, another USB in the back
Pulse input Optional DI card offering either logic or high frequency pulse counter
START / STOP key To start / stop record and to turn off the display only, not recorder itself so that a quick start possible
Calibration correction On-site calibration possible, or using handy features of Offset and Gain for correction
Multilingual Convenient for local users by offering 19 languages including English, Japanese,Danish, Italian, Polish, Russian, Dutch, Korean, Thai, Turkish, Portuguese, Chinese(simplied, traditional), French, German, Spanish, Swedish, Brazil Portuguese, Czech, other languages negotiable
PC software Historical Viewer+ Configuration Standard
Extensive software Data Acquisition Studio Optional real-time monitoring
Power supply 90-250VAC or 11-36VDC
Outer dimensions (W x H x L mm) 288 x 288 x 189
Shorter mounting depth (mm) 171
DIN panel cutout (W x H mm) 281 x 281
Protection IP65 front, IP20 rear
Operating temperature 0°C to 50°C
Storage temperature -30°C to 70°C
Safety standards RoHS
