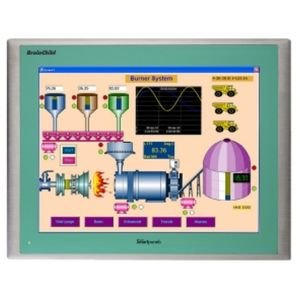

Brainchild HMI1550 Touch Panel

SmartPanels are Human Machine Interface (HMI) / Operator Interfaces, WinCE 6.0, LED technology, Wide panels, higher resolution, and four sizes in 4.3”, 7”, 10” & 15”. Ethernet, USB host, 2 Serial ports, SD, Audio input/output. Extensive connectivity to Profibus-DP, ProfiNet, DeviceNet, EtherNet/IP. CANopen, CC-Link. Metal/Stainless steel enclosures for rugged environments. Vertical/Horizontal installation. IP66K for Food, Beverage, Pharma and Oil & Gas.

It is possible to exchange data from PLCs via different ports of HMI simultaneously. Tools in HMI software are able to copy Tags from COM1 port to COM2, Ethernet, internal memory, or vice versa. BrainChild offers a variety of touch screen HMIs to meet different applications and purposes. You can read the online document of our HMI configuration to find out more.

Get a Quote!

Brand

Brainchild

Brainchild

BrainChild Electronics Co., Ltd. was established in 1977. Presently we are the largest Temperature Controller maker in Taiwan, and the only maker of the paperless recorder in Taiwan.

The factory has a full automatic SMT production line. TÜV Rheinland certifies our ISO9001 once a year. In addition we have a well equipped and CSA certified laboratory to do CSA, UL and CE tests. A strong and experienced R&D team allows us to offer customers innovative and state-of-art industrial instruments for various FA solutions. We have won good reputation by supplying quality instruments with better features at competitive prices. It is our philosophy in pursuit of perfection through continuous improvement.

Features

  • HMI 1550 is 15” display.
  • Three high-performance HMI 750, 1050, 1060 (wide screen) & 1550 with standard Ethetnet and SD slot.
  • Touch panels, higher resolution and all in 65536 colors
  • USB host, 2 Serial ports.
  • Net works of Profibus-DP, ProfiNet, DeviceNet & EtherNet/IP, CANopen, CC-Link.
  • Advenced and reliable WinCE 6.0 platform with more features for efficient and sophisticated control solutions
  • HMI 750, 1550 standard aluminum front bezels, optional stainless steel fronts for food, beverage, pharmaceutical industries
  • Rugged stainless steel front bezels with IP66K for high protection on dust & water, and polished surface for easy cleaning
  • Large memory of 128 MB Flash, 256MB SDRAM, sound input + output, 3DI + 3DO
  • USB Host port used for Keyboard, USB stick and mouse
  • Horizontal or vertical installation and display
  • Wide range of power supply 11-36 VDC or 90-250 VAC
  • LED backlight for even-color displays and long lifetime
  • Open WinCE 6.0 Core & Professional panels for OEM business

Specifications

proimages/PIC/HMI/size_diagram/HMI1550.jpg
Display
Size15″
Resolution (W x H in pixels)1024 x 768
Display typeTFT wide touch screen
Colors65,536
Touch screen TypeResistive analog
Active Display Area ( W x H mm )304 x 228
Display positionBoth horizontal & vertical
MTBF backlight at 25 °C50,000 hrs
BacklightLED
Brightness AdjustmentYes
Screen SaverYes
Language FontsUnicode including Simplified and Traditional Chinese, Japanese & Korean
Main Hardware
Processor, CPU speedARM Cortex-A8, 667Mhz
Flash Memory (ROM)128 MB
SDRAM (RAM)256 MB
Operation SystemWinCE 6.0
Real Time ClockYes
BuzzerYes
Sound Input+Output,3DI+3DOOption
SD card slotYes
Interfaces
RS232C, DB9 Male1
RS232C/ RS422/ RS485, DB25 Female1
Ethernet 10/100 Mbps, RJ452
USB Host1
Other Networks
PROFIBUS-DP, PROFINETOption
DeviceNet, EtherNet/IPOption
CANopenOption
CC-LinkOption
General Specifications
Power Supply11-36VDC,90-250VAC
Consumption (w/o sound output)27W
Power on LED indicatorYes
Outer dimensions (W x H x D mm)400 x 310 x 56
Mounting depth (mm)50
Panel cutout (W x H mm)367+1 x 289+1
ProtectionIP65 front, IP20 rear
Front bezel, housingAluminum, metal
Stainless Steel front bezel (option)Option, IP66K
InstallationPanel Mount
Net Weight (Kgs)5.1
