KN-V160 Oil Skimmers and Filtration Coolent Sparation System

KN-V160 Oil Skimmers

Table of Contents

KN-V160 Oil Skimmers‘ newly developed “Air type ultra-purification filtration machine” not only can easily remove chips but also can filter and purify oily and water-soluble cutting fluids to solve customer’s problems in this regard, so it is highly appreciated.

  • Liquid filter purification, easy removal.
  • Patented technology – easily correspond with liquid, water-soluble and Pure-oil Auto.
  •  Processing can easily recover swarf and sediment without stopping.
  •  The highest filtration accuracy can correspond to 5 nano.
  •  Solve the problem of long-term deposits on CNC water tanks such as iron chips, aluminum powder, fine sediment, etc.after machining.
  •  Widely used in metal cutting, aluminum machining, grinding process, engineering plastics, etc.

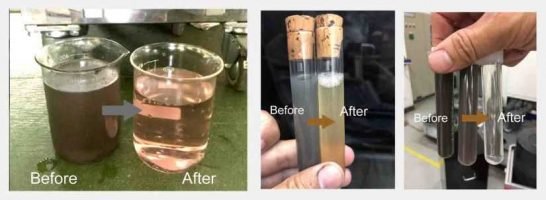

Result of KN-A50 Filtration Separation System
Result of KN-A50 Filtration Separation System

KN-V160 Oil Skimmers Feature

  • To solve the cutting of iron filings, aluminum powder, fine sediment…and other long-time deposition in the CNC water tank troubled.
  • Take the air pressure driveway, to avoid public security problems.
  • Widely used in metal cutting, aluminum processing, grinding problems, engineering plastics Patented technology-easy to deal with oily and water-soluble cutting fluid.
  • patented technology – special dehydration drying method, can clean CNC water tank.
  • processing liquid, sludge can also be a short time to cleat.
  • the maximum filter accuracy can to 1 um.

Specification

Model: KN-V160
No.Machine Size: 570X560X950 mm
Filter: 7 L
Weight: 60 Kg
Max Flow: 180 min
Air Pump min pressure: 0.5Mpa
Max Air: 0.4m³/min
Thickness Filter: 0.01um~25um
Filter: SUS 304
