FLOW METER

A flow meter is a device used to measure the flow rate or quantity of a gas or liquid moving through a pipe. Both gas and liquid flow can be measured in volumetric or mass flow rates, such as liters per second or kilograms per second, respectively.

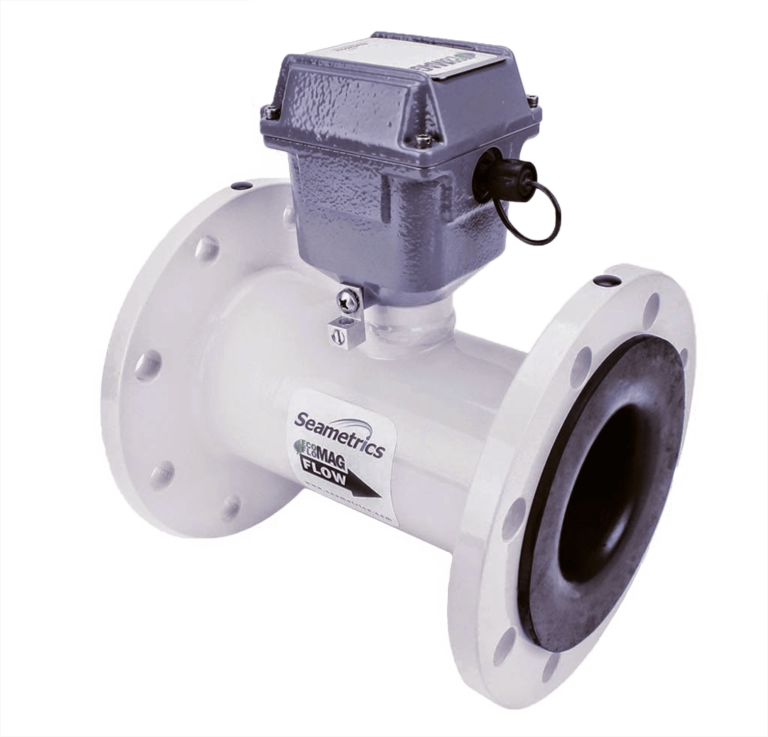

iMag 3600/4600

Electromagnetic Flow Meter

Measures fluid flow by the voltage induced across the liquid by its flow through a magnetic field.
Click Here

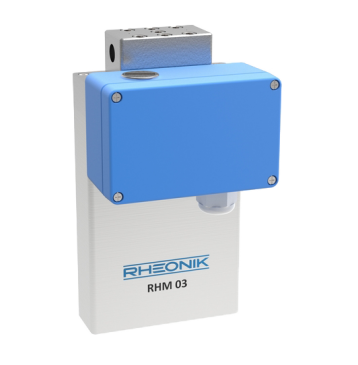

Coriolis Mass Flow Meter

A Coriolis meter is based on the principles of motion mechanics. When the process fluid enters the sensor, it is split.
Click Here

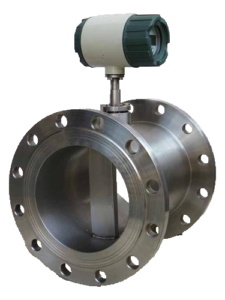

Flowmatex

Vortex Flow Meter

Vortex flow meters operate under the vortex shedding principle, where an oscillating vortexes occur when a fluid such as water flow past a bluff (as opposed to streamlined) body.
Click Here

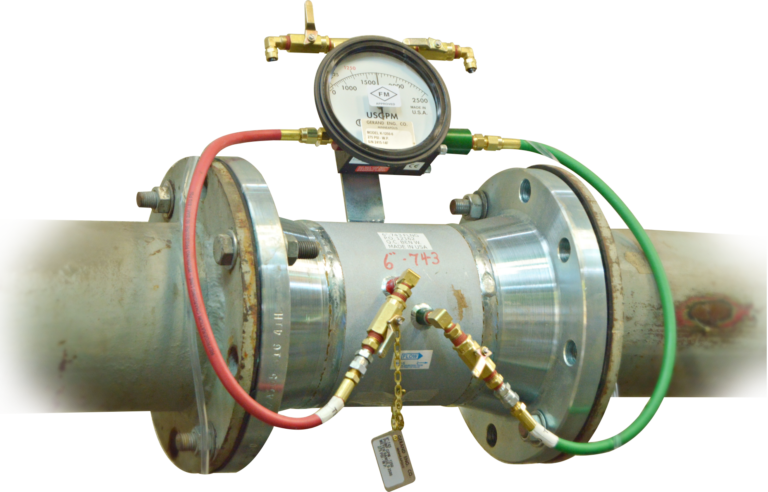

Gerand Venturi Flow Meter

Differential Pressure Flow Meter

Differential Pressure flow meters measure the velocity of fluids by reading the pressure loss across a pipe constriction.
Click Here

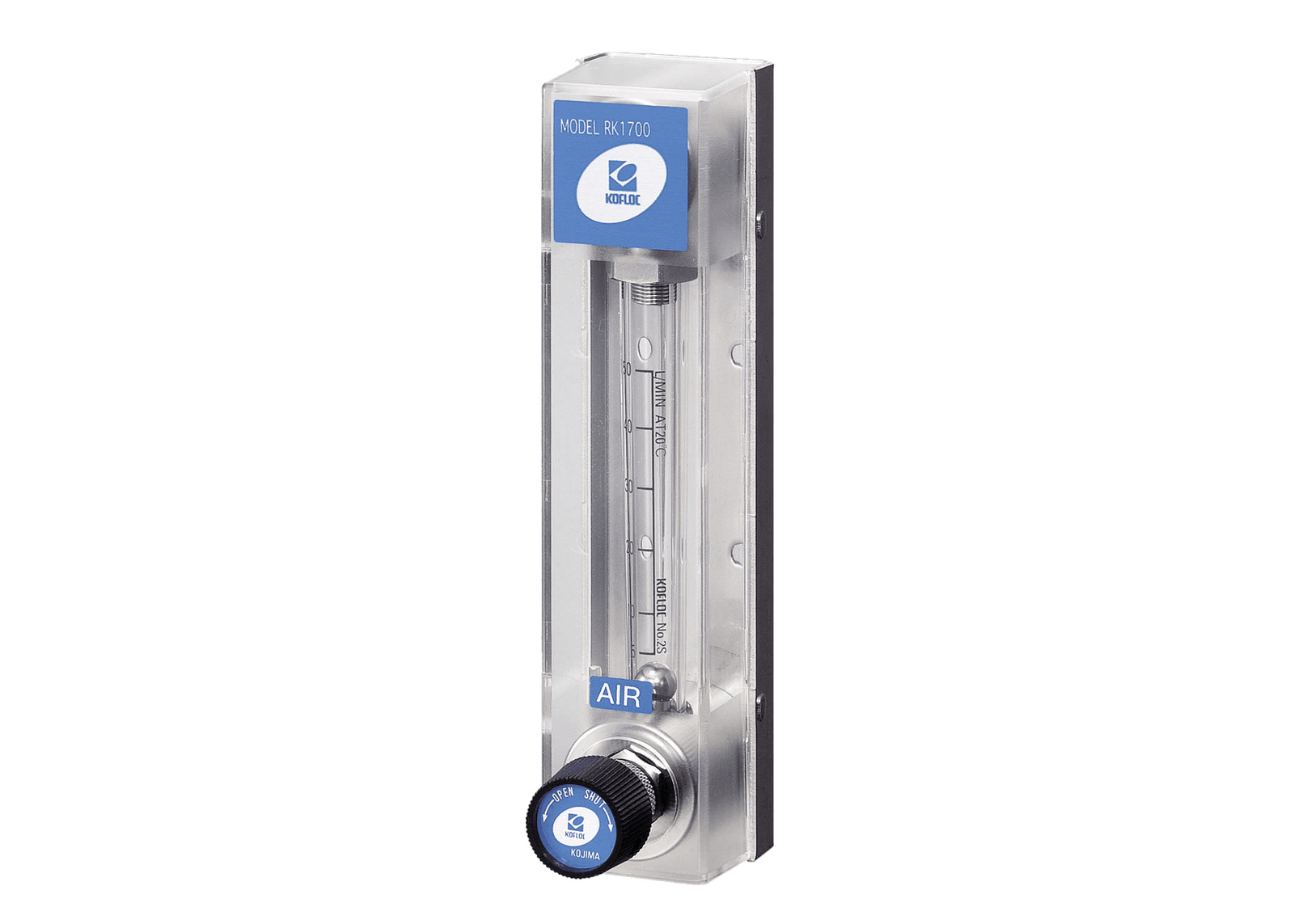

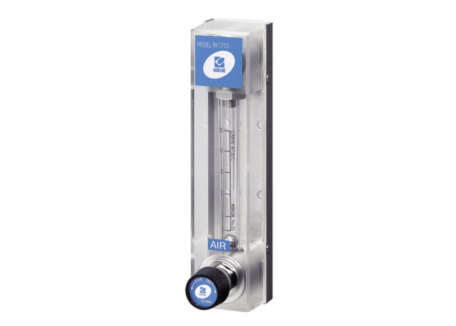

Variable Area Flow Meter

Variable Area Flow Meter

It includes a vertical tube through which the fluid flows whose diameter increases from the bottom to the top and a float which can move vertically in the tube.
Click Here

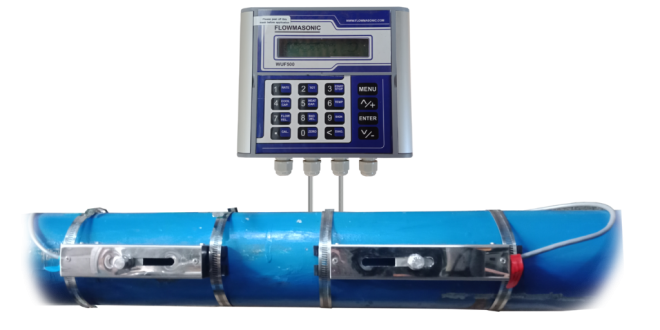

Ultrasonic Flow Meter

Measures the velocity of a fluid with ultrasound to calculate volume flow.
Click Here

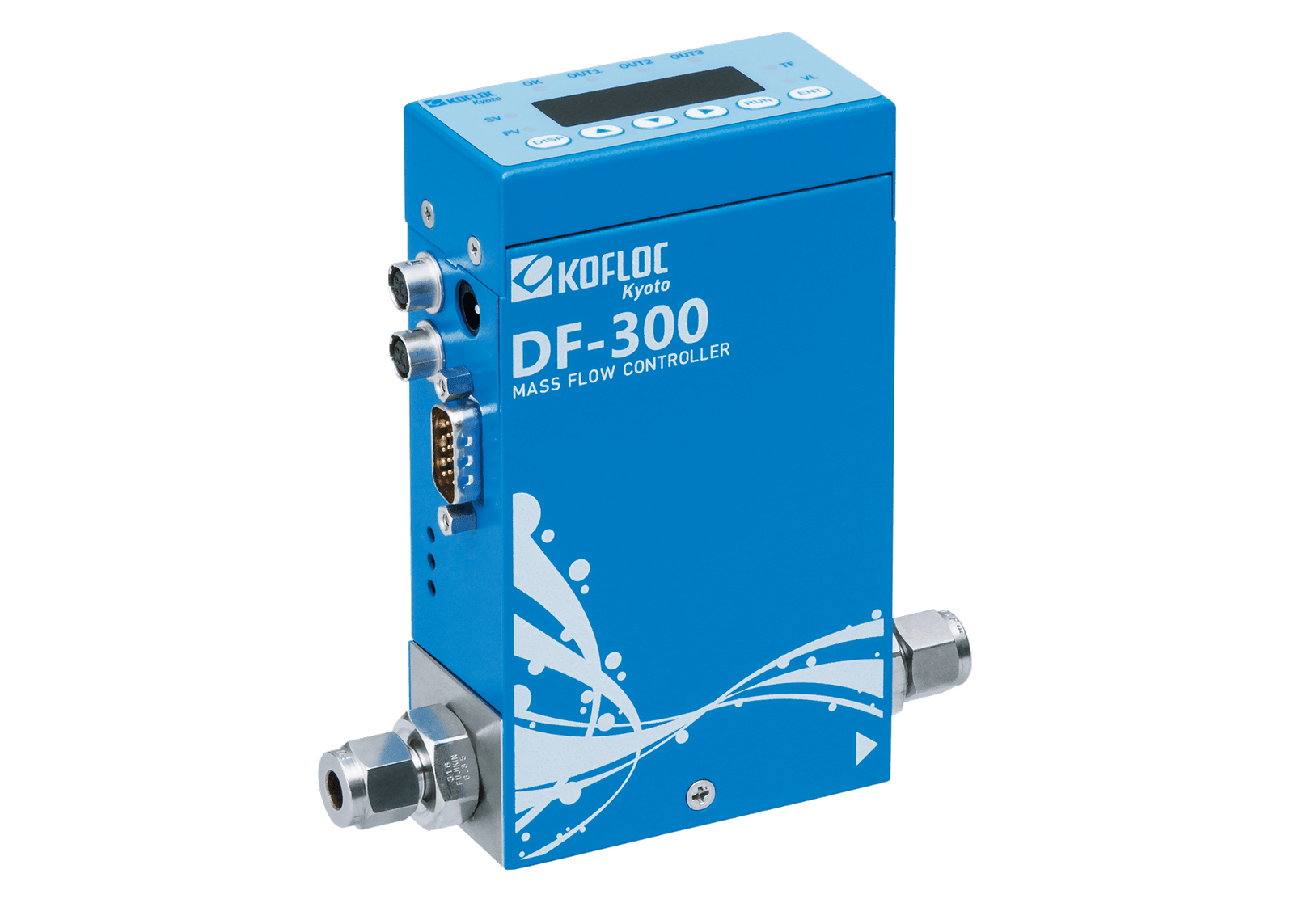

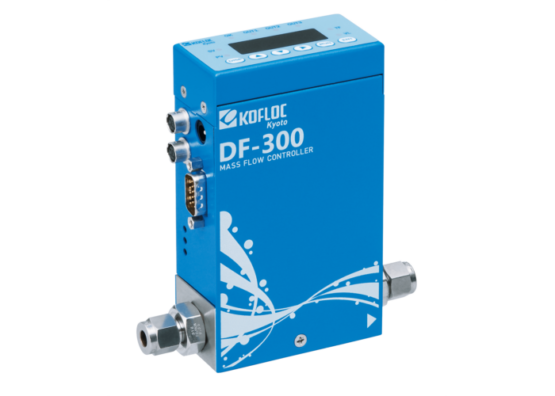

Thermal Mass Flow Meter

Thermal Mass Flow Meter

Instruments for the measurement of the total mass flow rate of a fluid, primarily gases, flowing through closed conduits.
Click Here

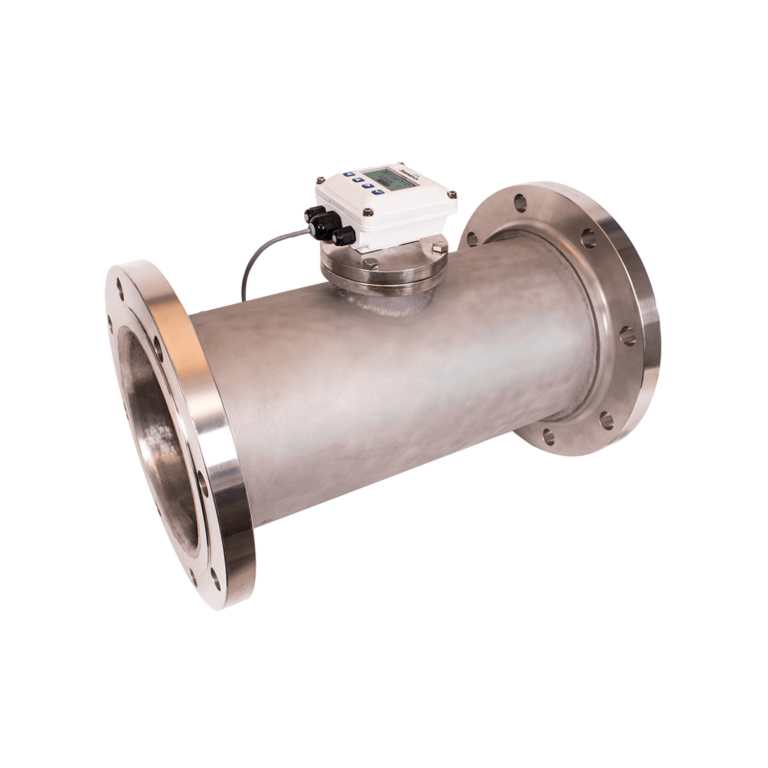

Turbine Flow Meter

Turbine Flow Meter

As fluid flows through the turbine meter, it impinges upon turbine blades that are free to rotate about an axis along the center line of the turbine housing.
Click Here

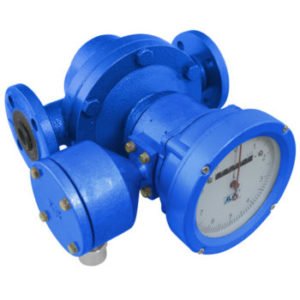

APF810 Series

Positive Displacement Flow Meter

Positive displacement flow meters measure the volumetric flow rate of a moving fluid or gas by dividing the media into fixed, metered volumes.
Click Here
